Classic Wall Cap

The Classic Wall Caps are available in straight and end pieces, corners, radiuses, and pilaster column caps. The Classic Wall Cap is styled with a smooth finish, a bullnose edge, and an overhang on both sides. Referred to as a Wall Cap System, Classic Wall Cap components have the versatility to complete any project.

Sizes

Short Form Specification
Classic Wall Cap Sizes*

STRAIGHTS/ENDS
8" x 24" x 2 1/2" 10 1/4" x 24" x 2 1/2" 12" x 24" x 2 1/2" 14" x 24" x 2 1/2" 16" x 24" x 2 1/2" *24" x 24" x 2 1/2" (STRAIGHT ONLY)
CORNERS
8" x 12" x 2 1/2" 10 1/4" x 12" x 2 1/2" 12" x 14" x 2 1/2" 14" x 16" x 2 1/2" 16" x 18" x 2 1/2"
*SIZES ARE EXCLUDED FROM SMOOTH FINISH

RADIUS PIECES
WIDTH: 10 1/4" RADIUS: 2', 3', 4', 6', 8', 10', 12', 14', 16' WIDTH: 12" RADIUS: 4', 6', 8', 10', 12', 14', 16' WIDTH: 14" RADIUS: 4', 6', 8', 10', 12', 14', 16' WIDTH: 16" RADIUS: 4', 6', 8'
(RADIUS IS MEASURED TO THE OUTSIDE EDGE ON A WALL CAP) *SIZES ARE EXCLUDED FROM SMOOTH FINISH

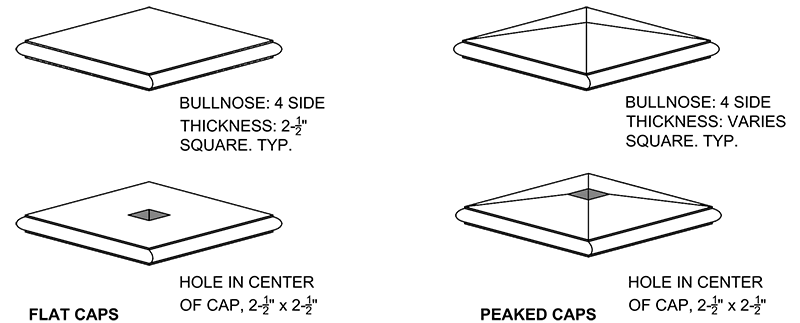

FLAT PILASTER CAP
10" x 18" x 2 1/2" 14" x 14" x 2 1/2" 16" x 16" x 2 1/2" 19" x 19" x 2 1/2" 22" x 22" x 2 1/2" 24" x 24" x 2 1/2" 28" x 28" x 2 1/2"

PEAKED PILASTER CAPS
14" x 14" x 3 3/4" 16" x 16" x 4" 19" x 19" x 4 1/4" 22" x 22" x 4 3/8" 24" x 24" x 4 1/2" 28" x 28" x 5"
CUSTOM PILASTER CAP SIZES AVAILABLE ALL SIZES ARE NOMINAL

Material: 4,000 PSI Hardrock Concrete, Type III Cement Finish: Smooth, Veranostone®, or Hermosastone® Color: Full-size physical samples are strongly recommended
